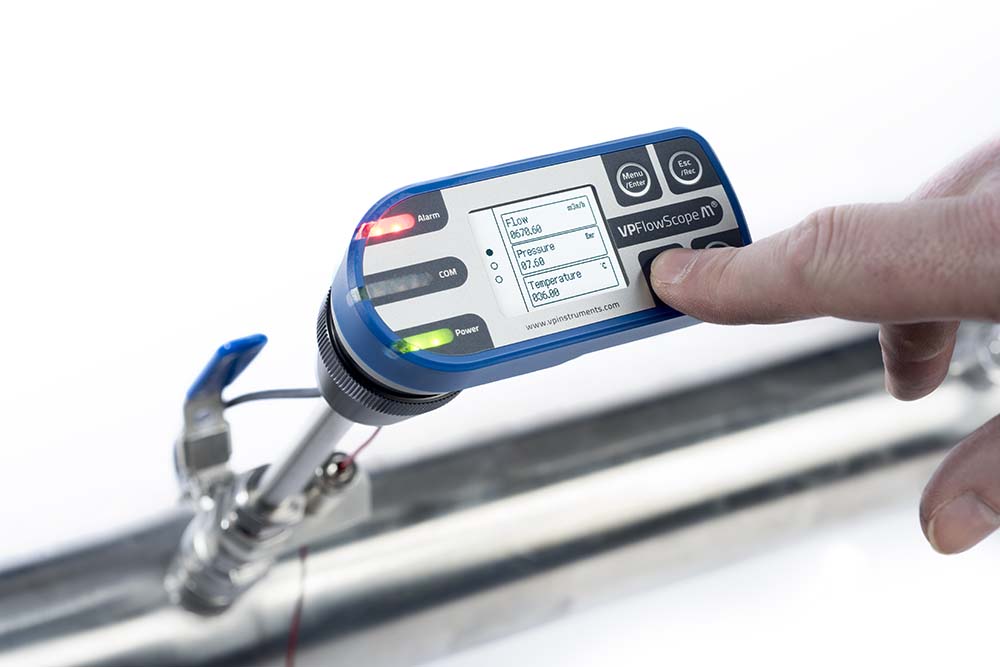

VPFlowScope M flow meter
The VPFlowScope® M is a four-in-one insertion flow meter for compressed air and technical gases. It can be installed under pressure and measures flow, pressure, temperature, and total flow simultaneously. With the introduction of the VPFlowScope M, recalibration becomes history.
Unlike traditional flow meters, the VPFlowScope M does not require traditional recalibration, where you have to ship the unit back. Instead, the VPFlowScope M consists of a transmitter and the patented VPSensorCartridge® which reduces recalibration to a simple exchange.
REQUEST A QUOTE DOWNLOAD BROCHURE- Four sensors in one instrument
- For compressed air and technical gases
- Patented VPSensorCartridge®: no more recalibration required
- Ethernet interface: Industry 4.0/IOT ready
- Ultra-compact size and low weight
- Ethernet (Modbus/ TCP)
- RS485 (Modbus RTU)
- 4 … 20 mA linearized, pulse mode or alarm output
- USB interface for configuration and downloading of data log files
- Optional TFT display
- Optional data logger
- Optional: Bi-directional flow measurement
- Demand-side compressed air monitoring
- Air audits
- Submetering of compressed air
- Ring networks (bi-directional)
- Industrial gas monitoring (air, nitrogen, carbon dioxide, argon and other dry, noncorrosive industrial gases)
- Cost allocation
- Leak detection
